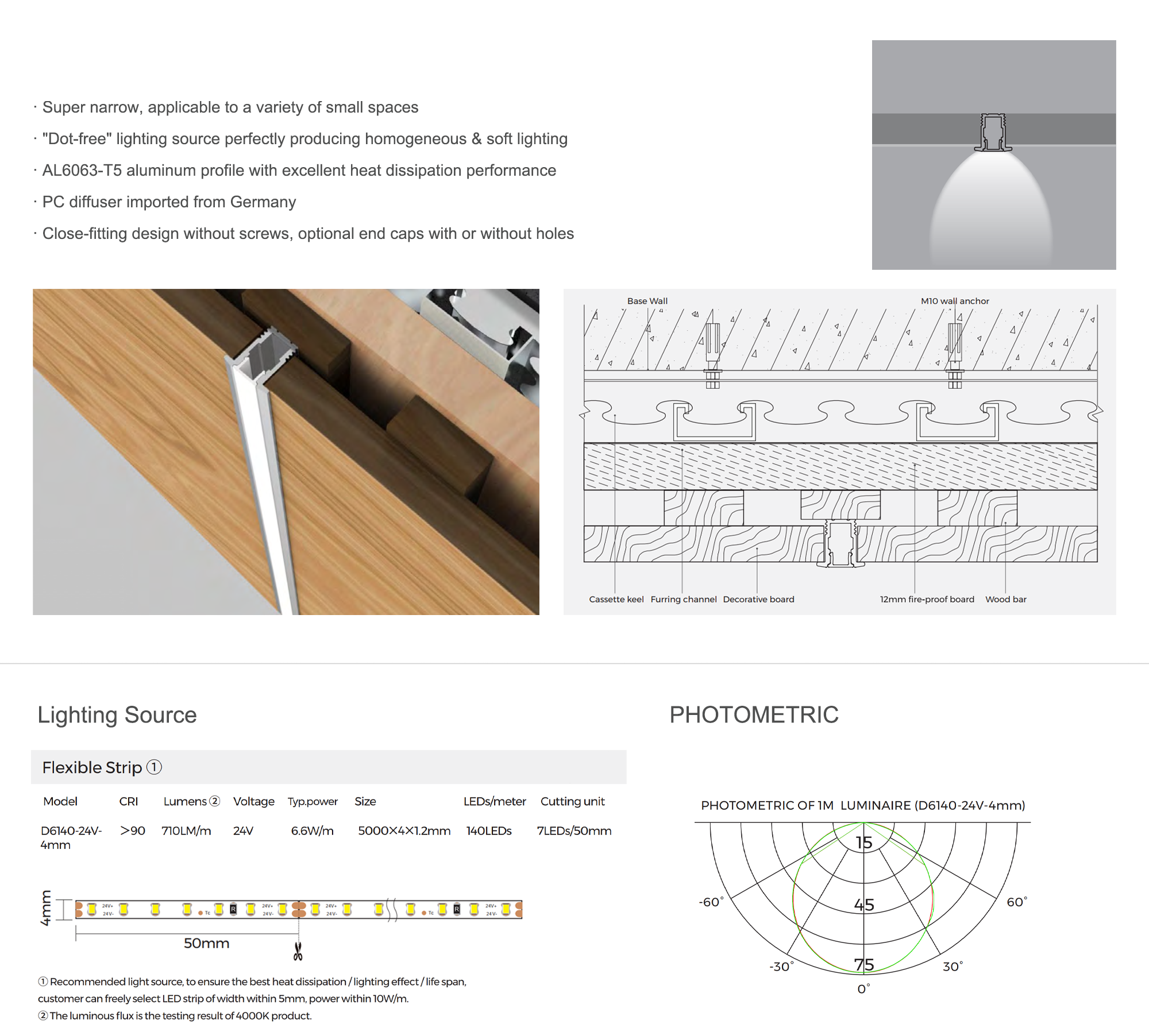

• Super narrow, applicable to a variety of small spaces
  • “Dot-free” lighting source perfectly produces homogeneous & soft lighting​​​​​
  • AL6063-T5 aluminium profile with excellent heat dissipation performance
  • PC diffuser imported from Germany
  • Close-fitting design without screws, optional end caps with or without holes



SPECIFICATIONS





     Product Code
Installation
Profile Material
Diffuser
Surface Processing
Heat Dissipation
Transmittance

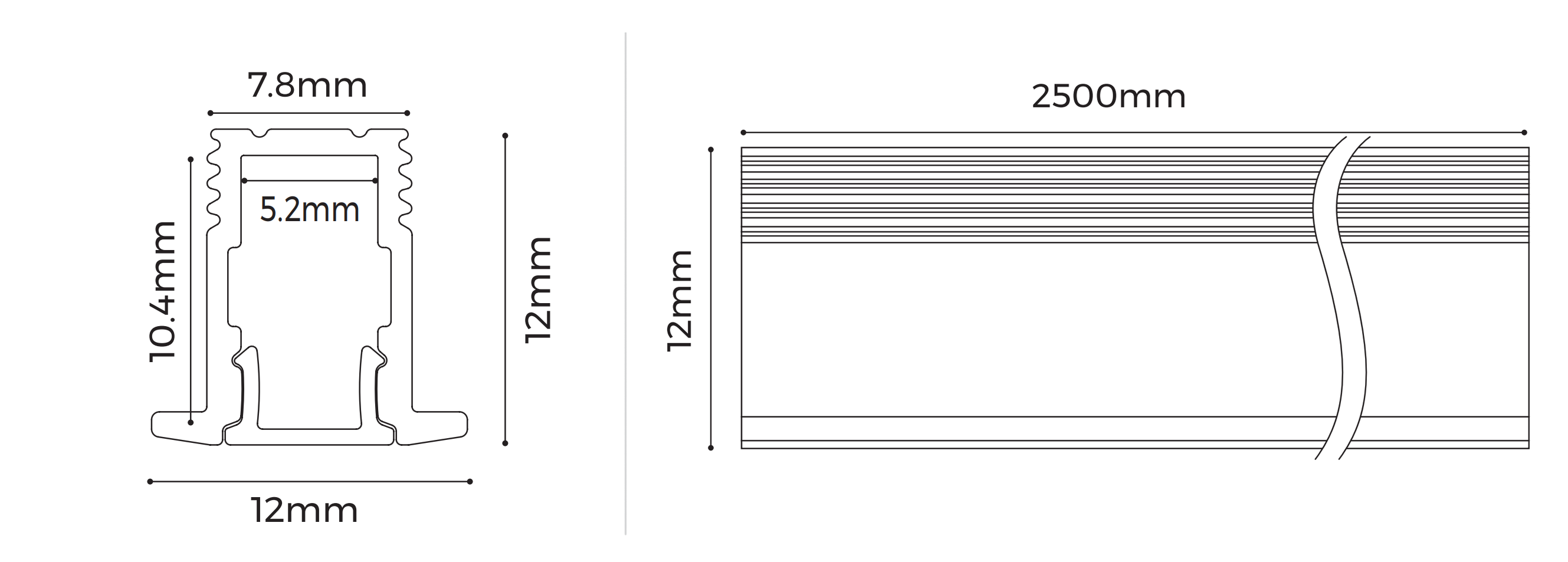

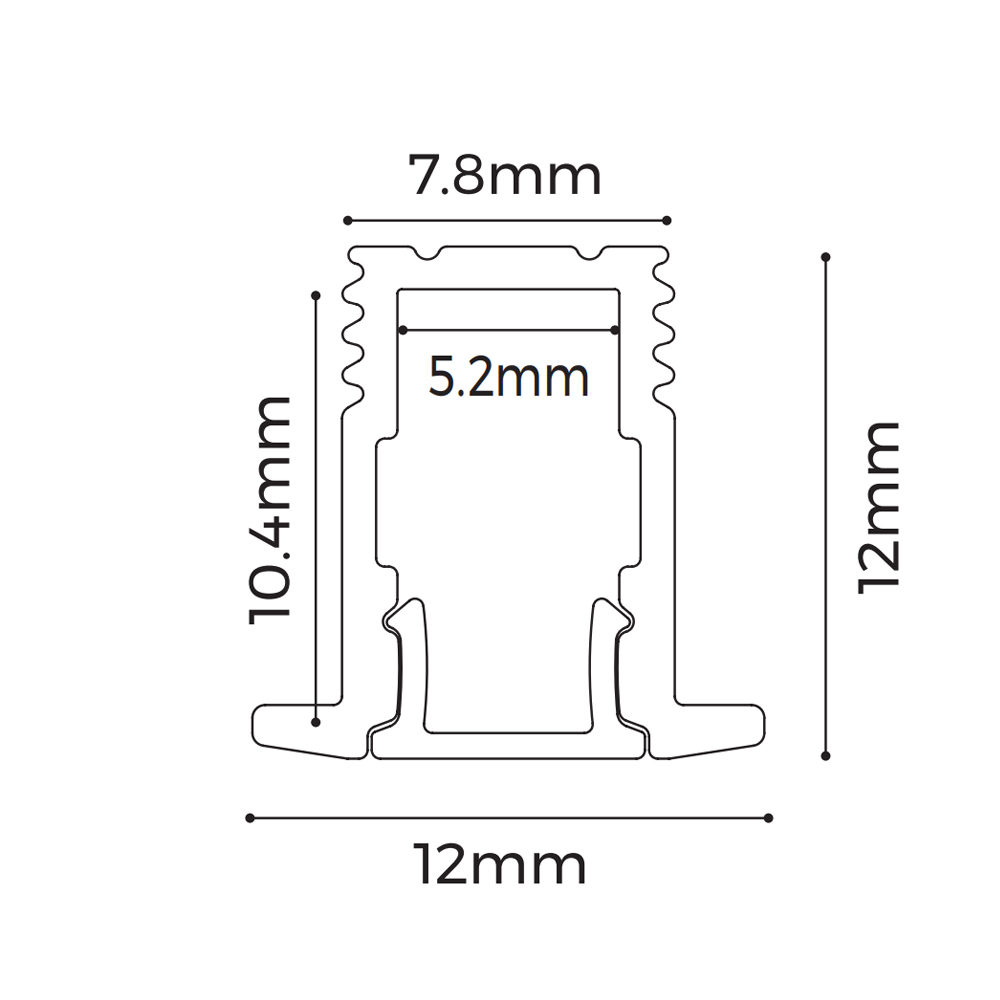

Length
Luminous Surface Size
LED Strips

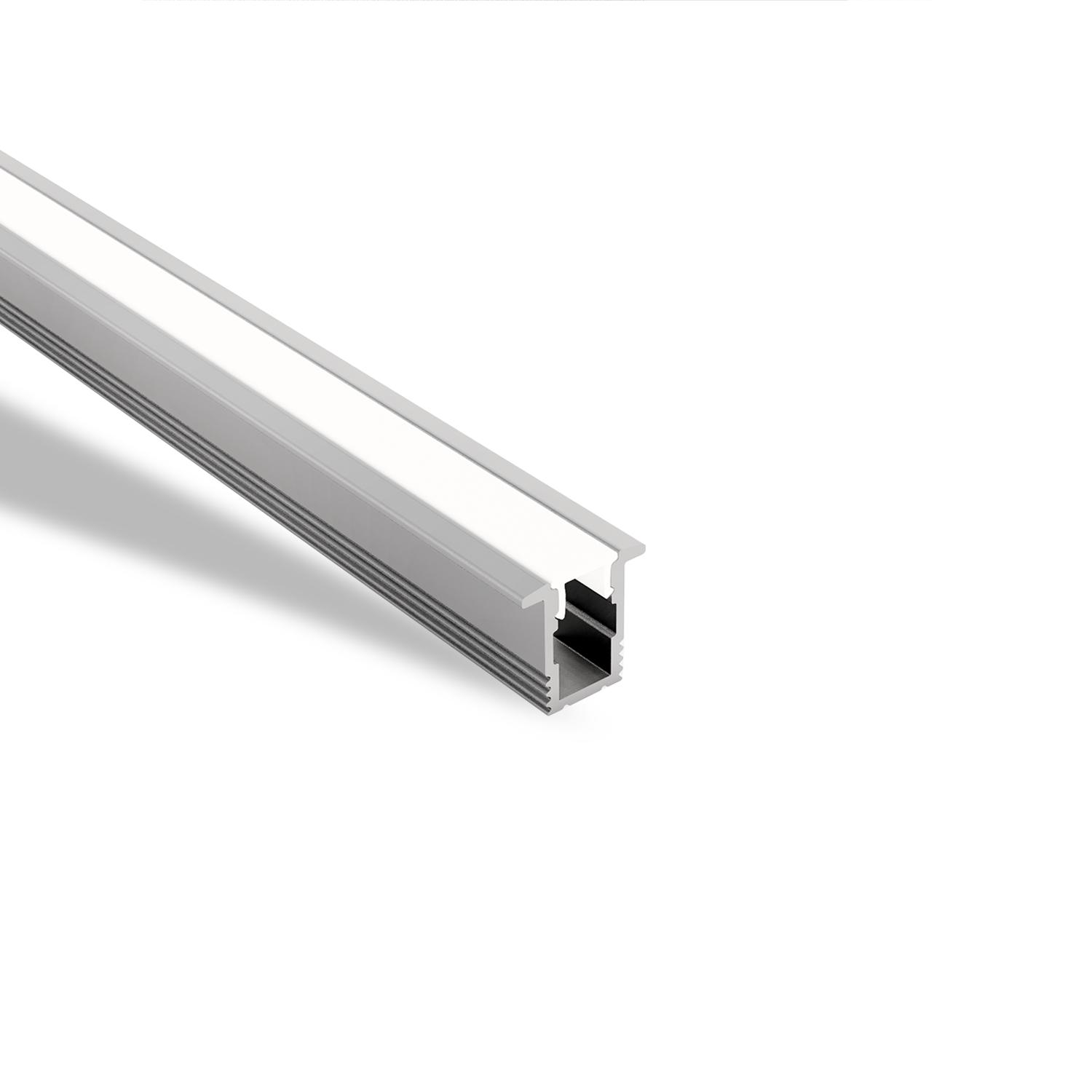

LE1212

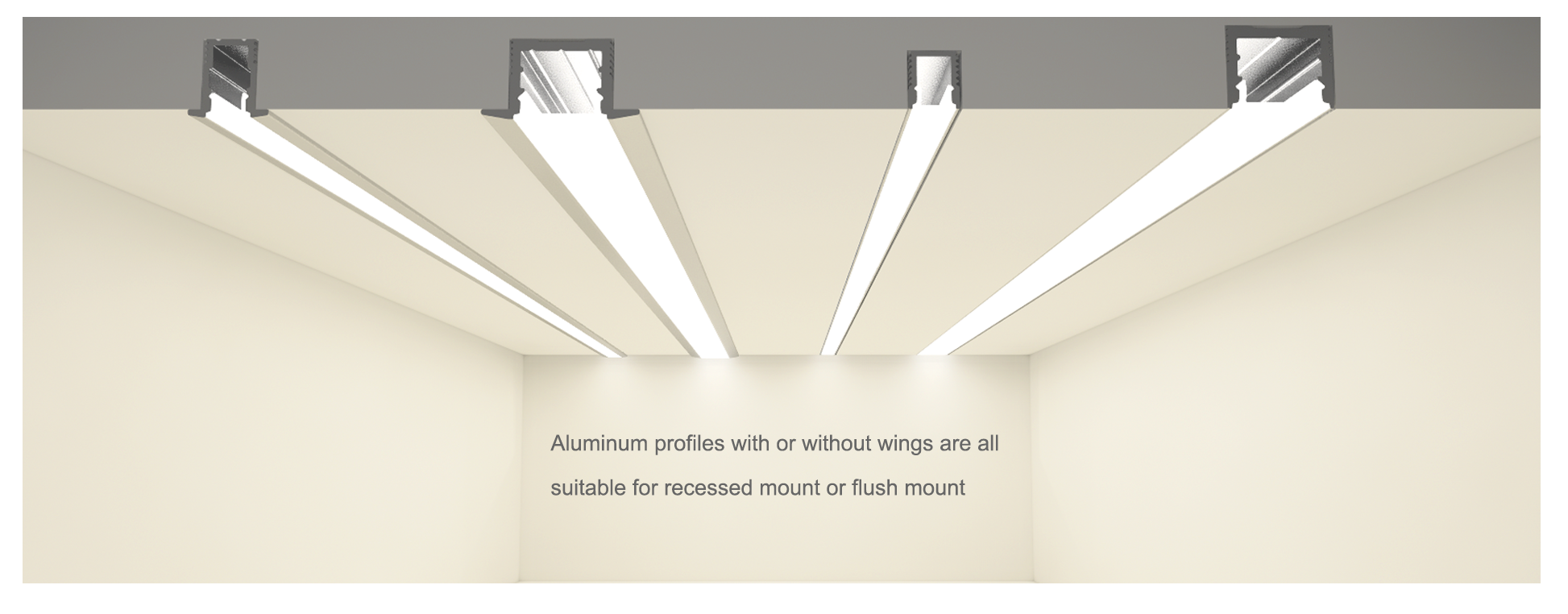

Recessed
6063-T5 Silver anodized Aluminium
PC
Spraying RAL9003 / RAL9005 / Anodizing
Max 12w/m
>55%
2500mm
10mm
Max 5mm width

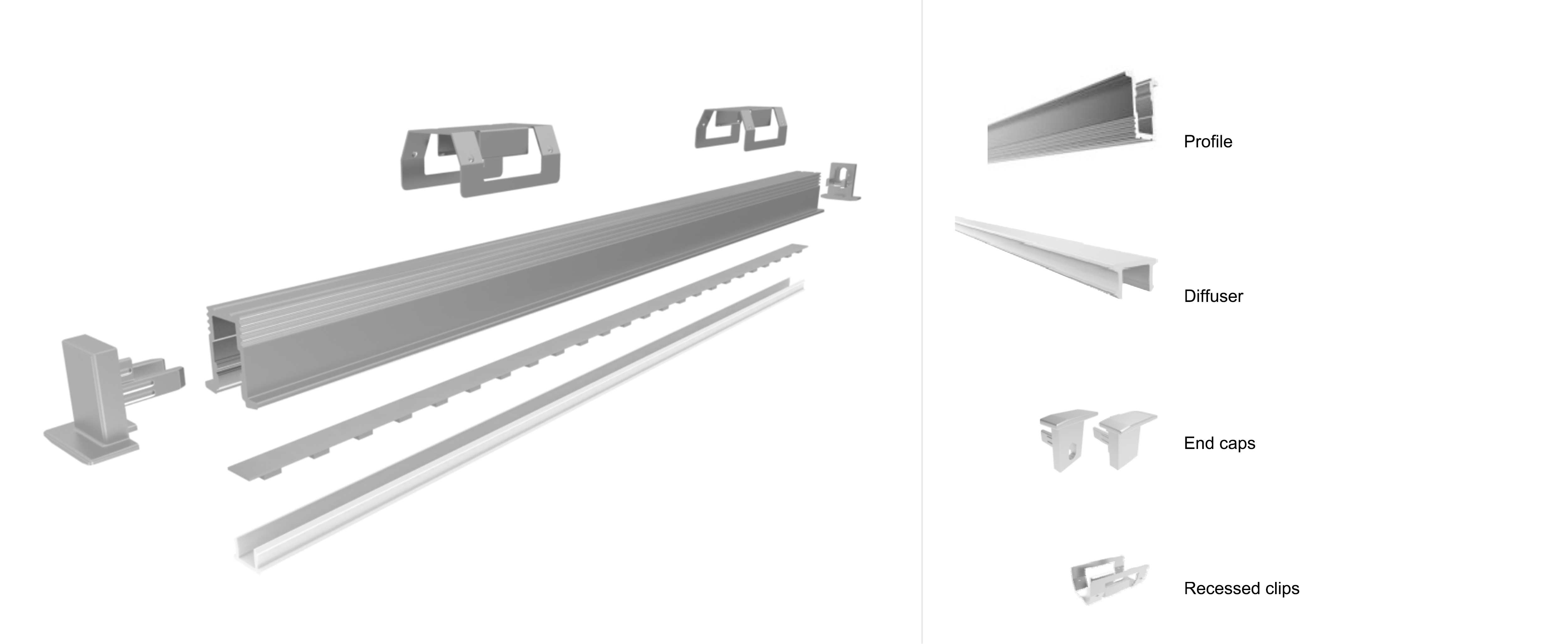

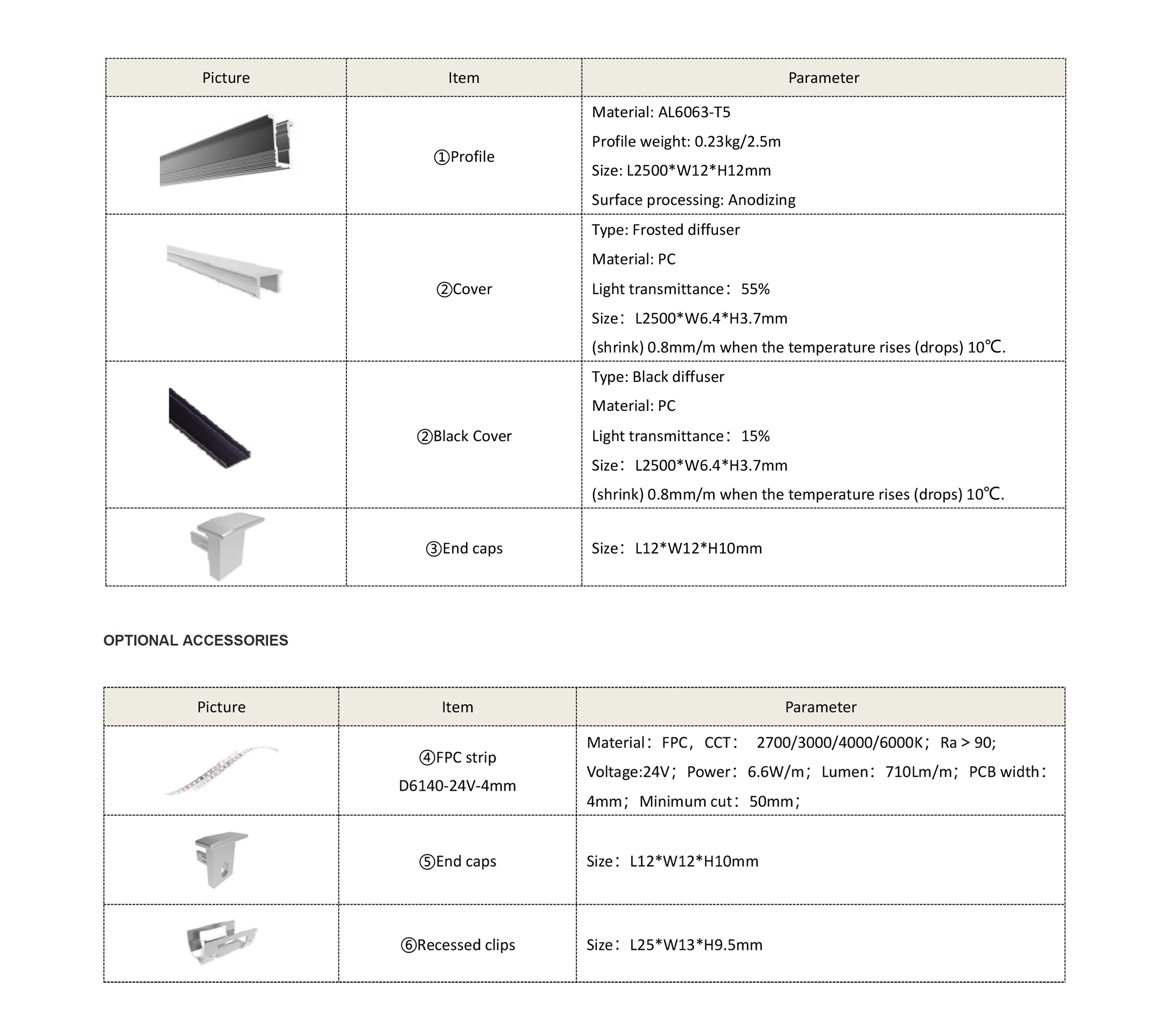

ACCESSORIES
